INSTALLATION TIPS
The system can be operated freestanding,
lying horizonally or mounted vertically.
If mounting vertically to a wall, securely
connect the mounting backet to the wall
using suitable screws.
Water pressure at the filter system inlet must
not exceed 116 psi (8 bar). A pressure reducer
valve must be installed on the water supply
side of the filter system if the inlet pressure
exceeds 116 psi (8 bar).
Shutoff valve must be installed upstream
of the filter.
Refer to Installation, Operation &
Maintenance Manual for cartridge flushing
and startup
OPERATION TIPS

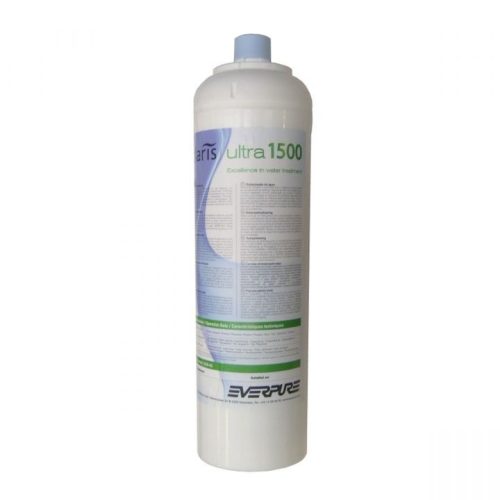

Change Claris Ultra Cartridge when its
precalculated water volume has been
reached or at least once per year.
Change cartridge when capacity
is reached.
Always flush the filter cartridge at time of
installation and cartridge change.
Do not use hardness test strips to check for
hardness reduction. Please use a titration
kit to check for hardness reduction.
SIZING
Service Flow Rate: Maximum 1.0 gpm
(3.7 Lpm)
Rated Capacity:
2,641 gallons (10,000 L) for Espresso
3,196 gallons (12,100 L) for Coffee/OCS
This capacity is based on influent water
hardness of 180 ppm with standard bypass
settings.
SPECIFICATIONS
Service Flow Rate
Maximum 1.0 gpm (3.7 Lpm)
Rated Capacity
2,641 gallons (10,000 L) for Espresso and
3,196 gallons (12,100 L) for Coffee/OCS.
This capacity is based on influent water
hardness of 180 ppm with standard
bypass settings.
Pressure Requirements
29 - 116 psi (2 – 8 bar), non-shock
Temperature Limits
39 - 86°F (4 - 30°C)
Overall Dimensions
18.56” L x 5.35” dia. (47.1 cm x (13.6 cm)
Electrical Connection
None required
